SPECIFICATIONS HD RANGER 2
|
|
OPERATION MODES
|
Hybrid operation: 7” touch screen or conventional buttons
|
|
DIGITAL STANDARDS
|
- DVB-T, DVB-T2, DVB-T2 lite
|
|
- DVB-C, DVB-C2, J83 Annex C QAM
|
|
- DVB-S, DVB-S2, DVB-S2 multistream, DSS
|
|
DOLBY DIGITAL PLUS
|
Included
|
|
CONNECTIVITY
|
- Universal RF input
|
|
- TS-ASI input and output
|
|
- IPTV input
|
|
- HDMI output
|
|
- Analog audio/video input and output
|
|

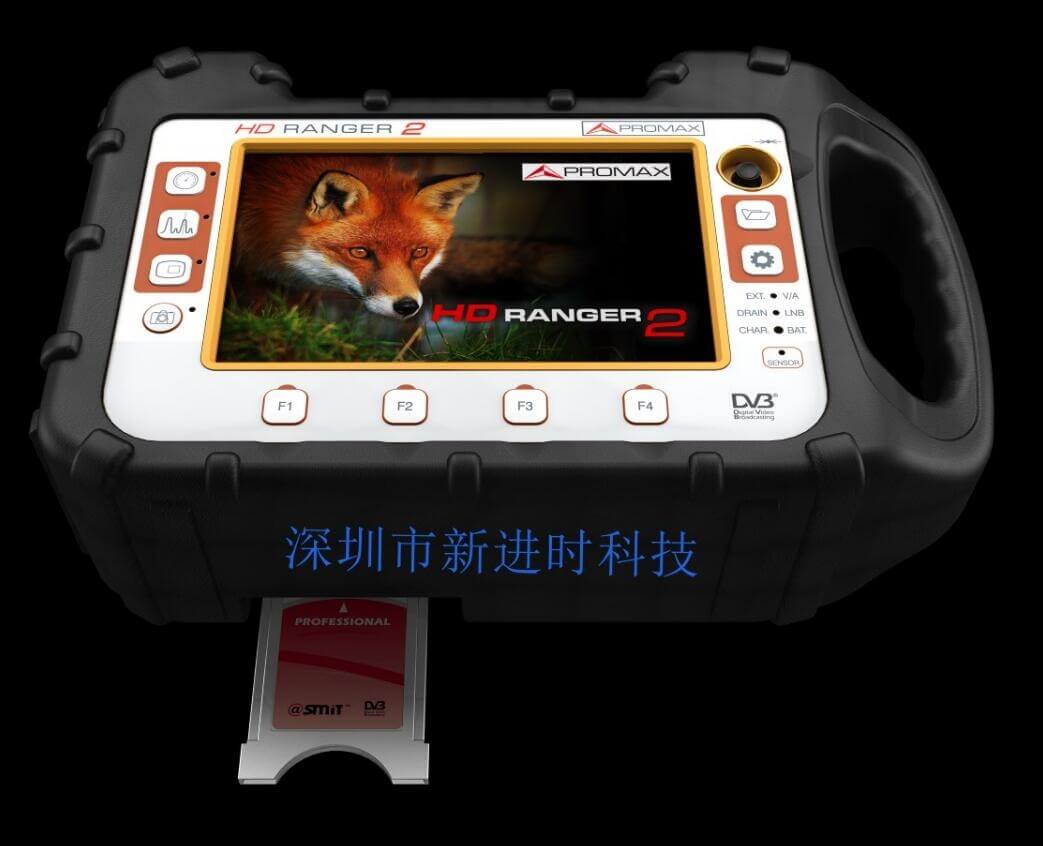

- Common Interface slot (CAM modules)
|
|
- USB interface
|
|
FUNCTIONS
|
- Merogram and Spectrogram
|
|
- Constellation diagram for all DVB standards
|
|
- LTE filters
|
|
- Dynamic echoes analysis
|
|
- StealthID (instant signal identification)
|
|
- DVB-S2 multistream
|
|
- PLS (physical layer scrambling)
|
|
- Ultra fast spectrum analyser
|
|
(90 ms sweep time) with peak hold
|
|
- FM RDS radio measurements
|
|
- Signal monitoring
|
|
- Field strength
|
|
- Task planner
|
|
- H.265 detection
|
|
OPTIONS
|
- Optical fibre measurements
|
|
- 3 GHz band extender
|
|
- DAB/DAB+ radio measurements
|
|
OPTICAL FIBRE (optional)
|
- Integrated optical-to-RF converter
|
|
- Integrated selective optical power meter
|
|
ASI-TS INPUT AND OUTPUT
|
- Real-time transport stream analysis function
|
|
IPTV INPUT
|
- Ethernet 100/1000 Mbps
|
|
- RJ45 connector
|
|
- UDP or RTP/UDP protocols
|
|
- MULTICAST / IGMP v2 transmission methods
|
|
- Payload: from 1 to 7 MPEG-2 packets
|
|
PC CONNECTION (via USB interface)
|
- NetUpdate 4 free software
|
|
- Free and automatic firmware updates
|
|
- Datalogger data download
|
|
- Channel tables customization
|
|
- Measurement reports
|
