SPECIFICATIONS HD RANGER 3
|
|
OPERATION MODES
|

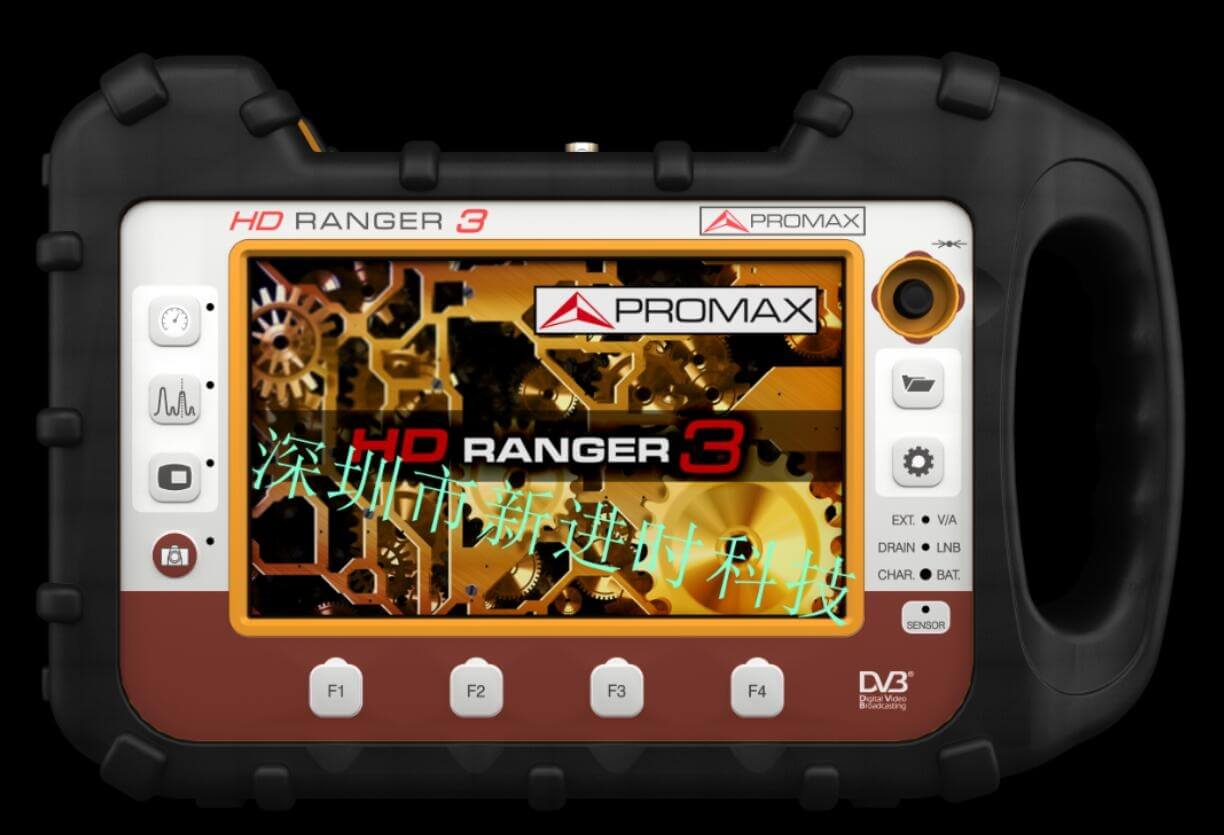

Hybrid operation: 7” touch screen or conventional buttons
|
|
DIGITAL STANDARDS
|
- DVB-T, DVB-T2, DVB-T2 lite
|
|
- DVB-T2 H.265, DVB-T2-MI (Gateway to Modulator)
|
|
- DVB-C, DVB-C2, J83 Annex C QAM
|
|
- DVB-S, DVB-S2, DVB-S2 multistream, DSS
|
|
AUDIO CODECS
|
MPEG-1, MPEG-2, HE-AAC, Dolby Digital Plus
|
|

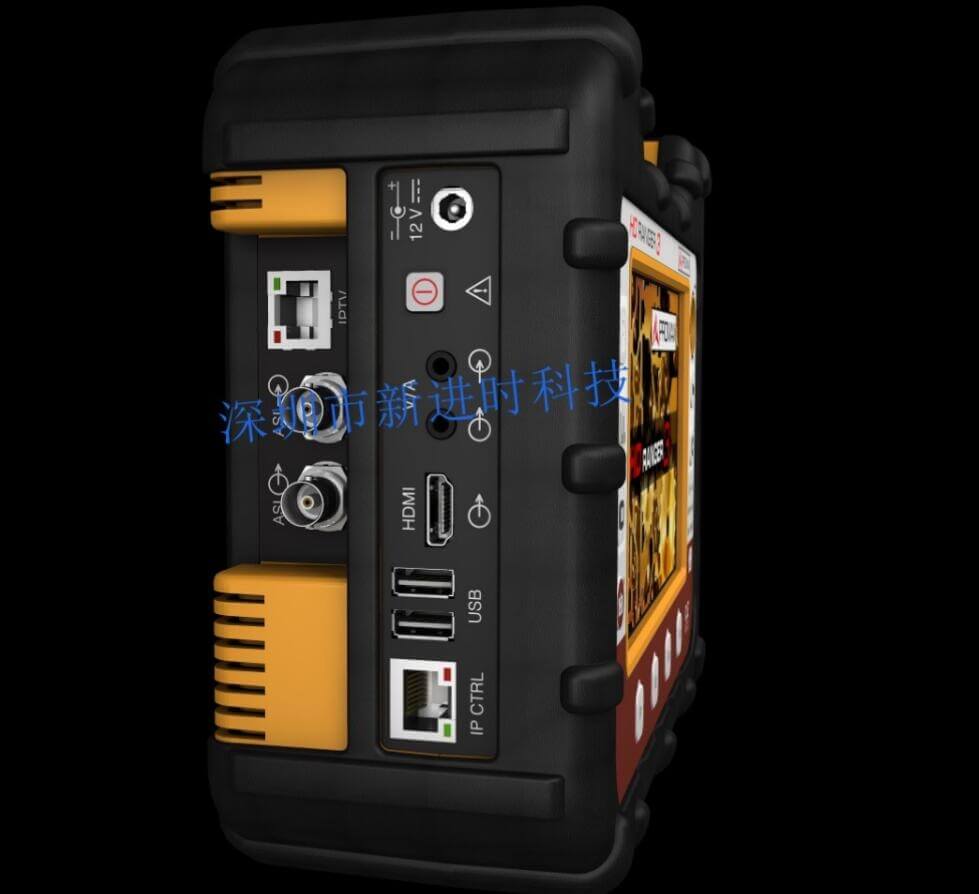

CONNECTIVITY
|

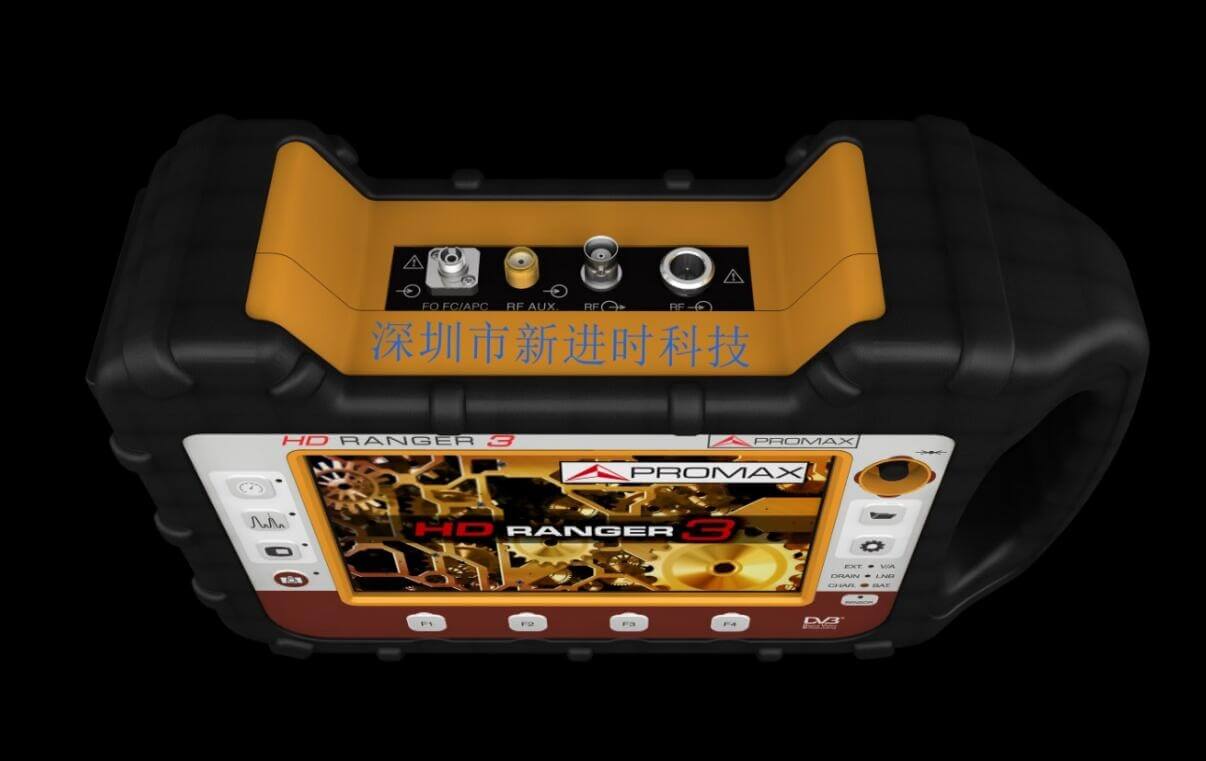

- Universal RF connector
|
|
- ASI-TS input and output
|
|
- IPTV Input for Measurements and Decoding
|
|
- HDMI output
|
|
- IP input for remote control
|
|
- Analogue Video/Audio input and output
|
|
- Common Interface module for slot for CA-modules
|
|
- 2 USB connectors for data tranferring and GPS
|
|
FUNCTIONS
|

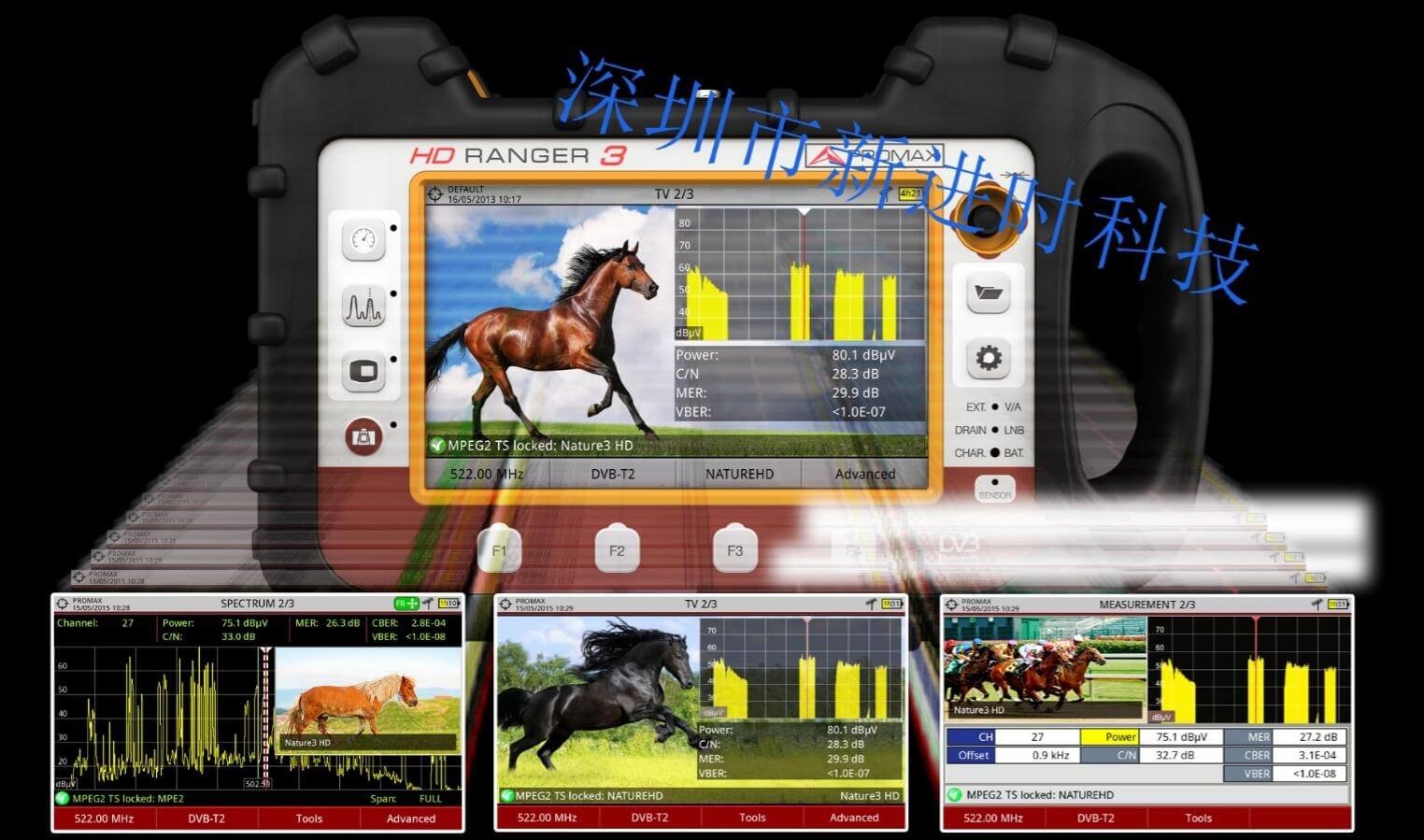

- Merogram and Spectrogram
|
|
- Constellation diagram for all DVB standards
|
|
- LTE filters
|
|
- Dynamic echoes analysis
|
|
- StealthID (instant identification of tuning parameters)
|
|
- DVB-S2 multistream
|
|
- PLS (Physical Layer Scrambling)
|
|
- Ultra fast spectrum analyser (90ms sweeping time)
|
|
- Peak hold
|
|
- FM RDS radio measurements and decoding
|
|
- Signal monitoring
|
|
- Field strength
|
|
- Task planner
|
|
- H.265 detection, measurements and decoding
|
|
- Screenshots and Datalogger for measurement reports
|
|
OPTIONS
|
- Optical fibre measurements
|
|
- 5 GHz band extender
|
|
- DAB/DAB+ radio measurements
|
|
- GPS
|
|
OPTICAL FIBRE (optional)
|
- Integrated optical-to-RF converter
|
|
- Integrated selective optical power meter
|
|
ASI-TS INPUT AND OUTPUT
|
Real-time transport stream analysis function with TS tables display
|
|
IPTV INPUT
|
- Ethernet 100/1000 Mbps
|
|
- RJ45 connector
|
|
- UDP or RTP/UDP protocols
|
|
- MULTICAST / IGMP v2 transmission methods
|
|
- Payload: from 1 to 7 MPEG-2 packets
|
|
PC CONNECTION (via ethernet interface)
|
- NetUpdate 4 free software
|
|
‘- Free and automatic firmware updates
|
|
- Remote control (webserver)
|
|
- Datalogger data download
|
|
- Channel tables customization
|
|
- Measurement reports and screenshots
|
