- HMP2020: 1 × 0 V to 32 V/0 A to 10 A; 1 × 0 V to 32 V/0 A to 5 A (188 W)
- HMP2030: 3 × 0 V to 32 V/0 A to 5 A (188 W)
- Low residual ripple due to linear postregulators
- Realtime voltage, current and power values
- High setting and readback resolution: 1 mV and 0.1/0.2/1.0 mA (depending on current and model)
- FuseLink (electronic fuse) freely combinable for all channels
- FuseDelay tunable up to 250 ms
- EasyArb function directly programmable on device
- PC software (free of charge) for easy generation of user-defined waveforms
- Independently adjustable overvoltage protection (OVP) for each channel
- Advanced parallel and serial operation via V/I tracking
- Front connectors: 4 mm (0.16 in) safety sockets
- Rear connectors for all channels, including sense
- USB/RS-232 dual interface, remote control via SCPI-based commands
- √Products
- Modulation Card, Stream Card
- GPS Signal Generator
- Field Strength Meter
- RF Record Player
- Network Analyzer
- Signal Generator
- Power Supply
- Wifi Test
- Dynamometer
- Frequency Response Analyzer
- EMC and Field Strength Test
- Bluetooth Test
- Oscilloscope
- Audio Test
- Modulator

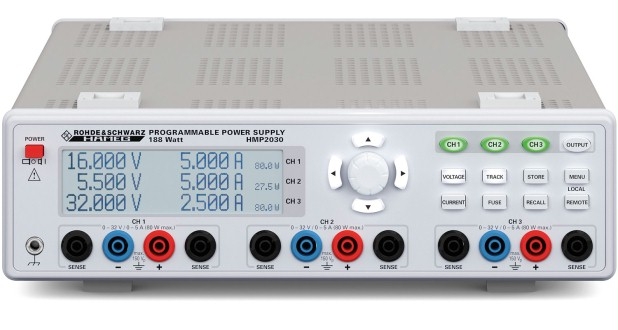

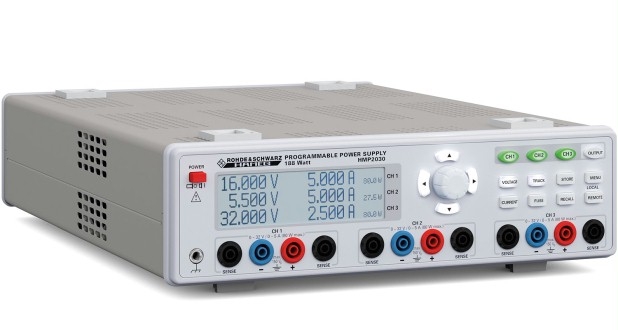

HMP2020/HMP2030 Programmable Two/Three-Channel Power Supply
